Surge Arresters

Overview

Surge arresters provide surge protection where Syscor’s Sensor Hub, Inclinometer, Repeater, Rapid Deployment External Leak Detection System (ELDS), and IIoT System Enclosure are exposed to lightning strike risk.

Highlights

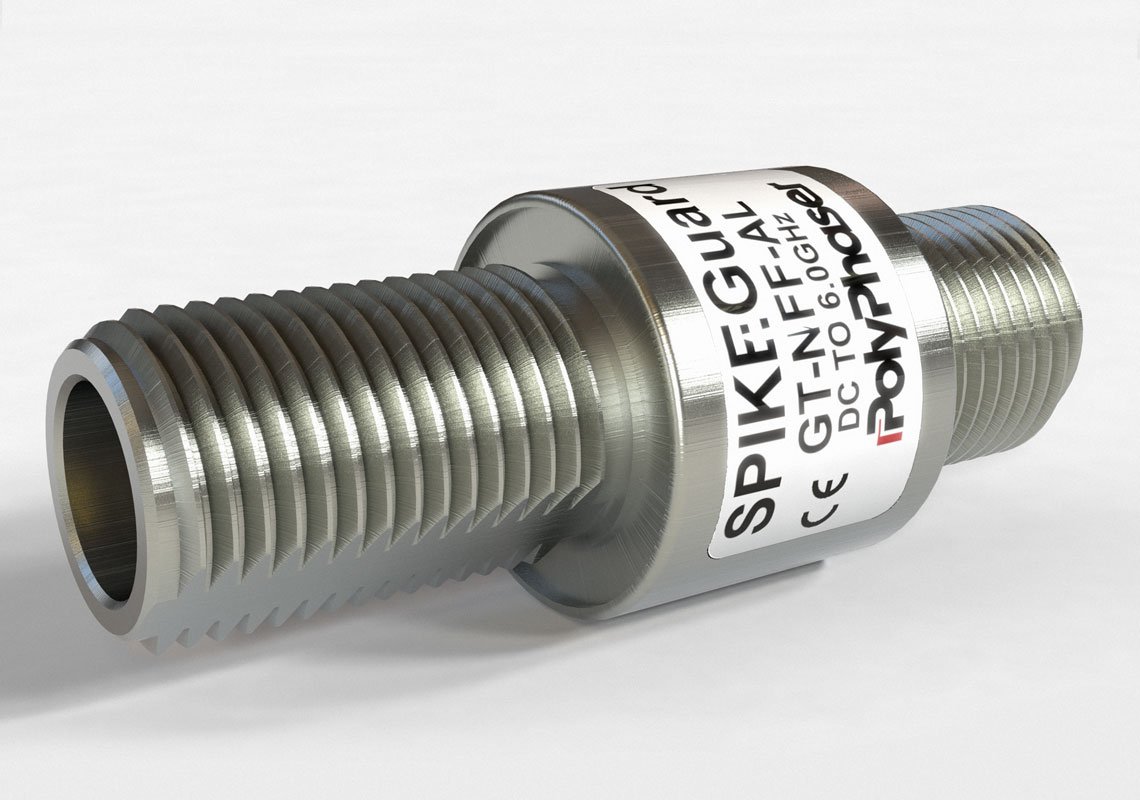

N-type Female-to-Female coaxial surge arrester
6GHz/50Ω
Max Power 90W(RMS)
Surge Current of 20kA
Waterproof IP67

Installation

A. To antenna
B. Coaxial RF
C. Drip loop
D. Lightning arrestor
E. Type N bulkhead connector
F. 5/8in.ring terminal
G. #6 AWG copper wire
H. Transient protection ground
I. Outdoor rated enclosure
J. Protective ground
K. Earth
L. Weather proofing sealant

Indoor/Outdoor Cabinet and Antenna
Indoor/Outdoor Installation

Outdoor Cabinet and Antenna
Outdoor Installation

Documents

PDF PolyPhaser GT-NFF-AL Surge Arrestor
PDF PolyPhaser Surge Arrestor Ground Kit
PDF PolyPhaser GT-NFF-AL Surge Arrestor Install Guide
