HCDW Hydrocarbon Detector Probe with Water Level

Overview

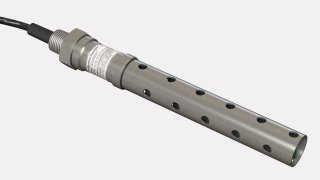

The HCDW Hydrocarbon Detector Probe with Water Level detects the presence of hydrocarbons (butane and heavier) using patented Polymer Absorption (PA) Sensor technology. The HCDW Probe also senses temperature, acceleration/vibration, and water level. The HCDW Probe must be connected to a PCU-X01 Sensor Hub or a PCU-X11 Inclinometer for power and communications.

Applications

Aboveground storage tank (AST) floating roofs:

Deck
Pontoons

Above and below ground equipment:

Piping flanges
Tank mixers
Sumps
Pipelines
Well pads
Production tanks

Water bodies:

Rivers
Streams
Lakes
Reservoirs
Ocean

Highlights

Hazardous location compliance: ATEX, IECEx, CSA
Intrinsically Safe and deployable in Zone 0, Class 1 Div. 1 environments
Integrates seamlessly with any standard WirelessHART network
Hydrocarbon detection (butane and heavier) on contact when above ground, below ground, and within water bodies (including ice)
Operating Temperature: -40°C to +60°C [-40°F to +140°F]
Ingress Protection: IP68, Type 4X
Enclosure: Stainless steel 316
Made with Syscor’s Polymer Absorption (PA) Sensor technology
Power supplied from battery packs connected to the PCU-X01 Sensor Hub or PCU-X11 Inclinometer (10+ years battery life)
HCDW Probe water level measurement: ½ inch increments; up to 5 inches

Accessories & Options

Use of magnets and other standard hardware for precise mounting if not screwed directly into the PCU-X01 Sensor Hub, PCU-X11 Inclinometer sensor ports (Remote mounting)
Sensor probe cable length options: 1m (3 feet), 2m (6 feet), 3m (10 feet), and 10m (33 feet)

Configurations

HCDW Probe Installation

One or two HCDW Hydrocarbon Detector Probes may be directly attached to the PCU-X01 Sensor Hub or PCU-X11 Inclinometer or remotely attached via cable of up to 10m (33ft) length

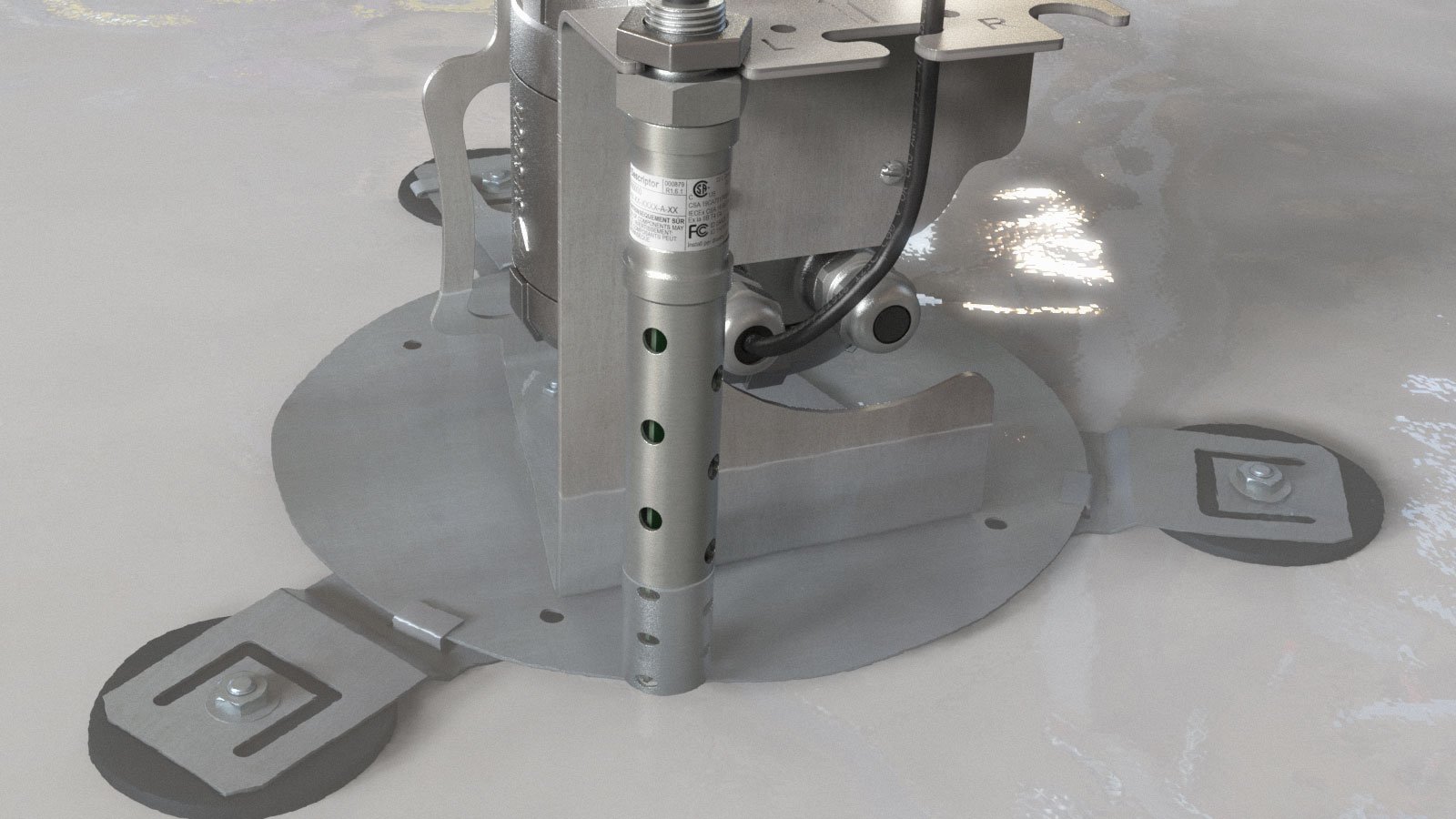

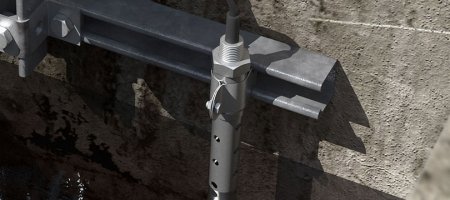

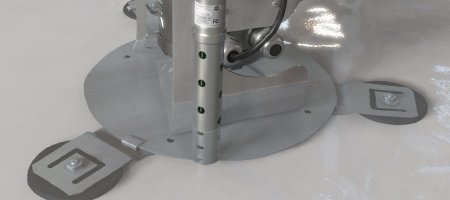

Depending on application, the HCDW Probes may be mounted with standard mounting hardware (e.g. strut channel), with magnets, or attached to Syscor's Floating Roof Mounting Bracket.

HCDW Probe Mounting Options
