Antennas

The correct antenna can improve communication among Syscor Tracker field units within a system and between field units and the WirelessHART Gateway.

Antenna selection depends on site and application requirements.

Model Frequency Range Gain Directionality Angle Polarization Applications Data Sheet
Rigid Monopole RD2458-5-OTDR Rigid Antenna 2.4, 5.3, 5.8 GHz 3 dBi @ 2.4 GHz Omnidirectional 90° Linear General purpose <500ft range PDF
Whip Monopole FW.24.NTY.M Flexible Whip Antenna 2.4GHz 4.26 dBi Omnidirectional 70° Linear General purpose <1,000ft range PDF

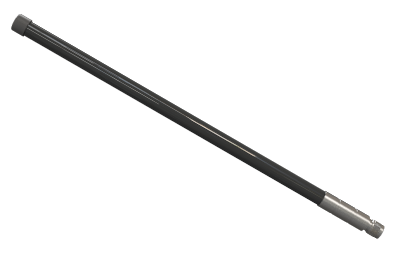

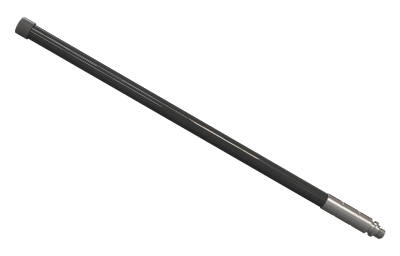

High-Gain Monopole OMB.242.08F21 High Gain Antenna 2.4GHz 8 dBi Omnidirectional 12° Linear General purpose <2,000ft range PDF
Directional Antenna XW-24-H10 Directional Antenna 2.4GHz 9.6 dBi Directional 50° Right Hand Circular Extended range communications when multipath is of concern <1,500ft range PDF
Directional Antenna XW-24-H13 Directional Antenna 2.4GHz 13.5 dBi Directional 32° Right Hand Circular Long range communications when multipath is of concern <2,500ft range PDF
RHCP Patch WTSP.2400.25.4.40 Patch Antenna 2.4GHz 4.93 dBi Omnidirectional Hemispherical 180° Right Hand Circular Inside storage tanks PDF
