PCU-X01 WirelessHART Sensor Hub

Sensor Hub with HCD and HCDW Hydrocarbon Detectors

Overview

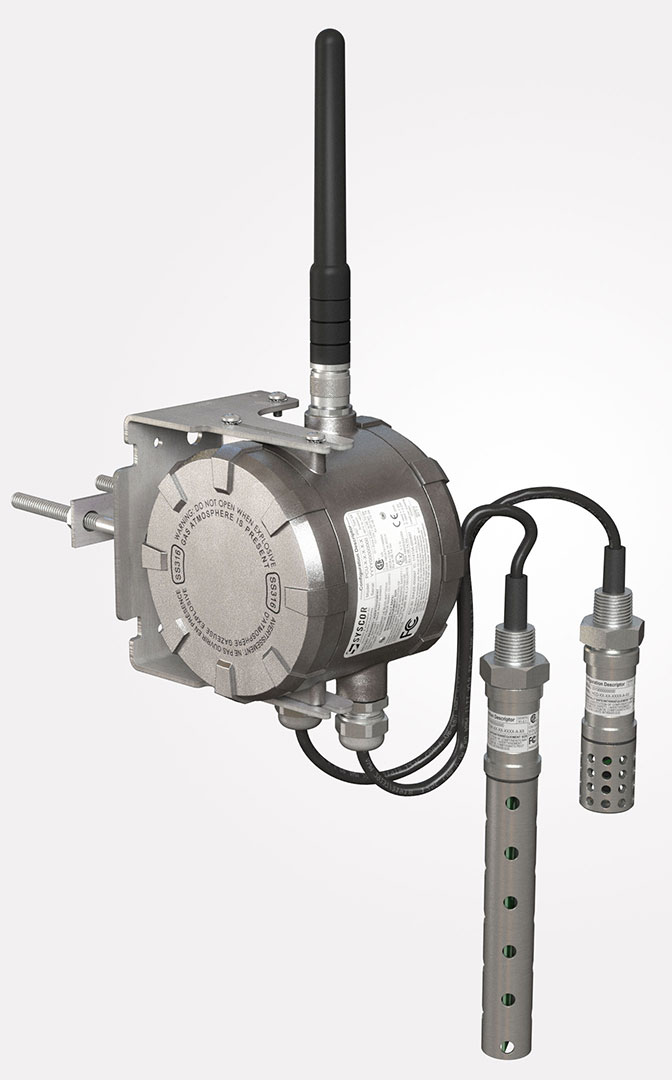

Syscor’s PCU-X01 Sensor Hub provides battery-power and WirelessHART communication for up to two of Syscor’s Hydrocarbon Detector Probes. The Sensor Hub, HCD Hydrocarbon Detector Probe, and Hydrocarbon Detector Probe with Water Level are essential components of the HC-Tracker safety system for integrity monitoring of petroleum equipment.

Applications:

  • Pipelines
  • Well pads
  • Production tanks
  • Water bodies
  • Piping flanges
  • Tank mixers
  • Sumps

Highlights:

  • Hazardous location compliance: ATEX, IECEx, CSA
  • Intrinsically Safe and deployable in Zone 0, Class 1 Div. 1 environments
  • Integrates seamlessly with any standard WirelessHART network
  • Operating Temperature: -40°C to +60°C [-40°F to +140°F]
  • Ingress Protection: IP67, Type 4X
  • Stainless steel 316 enclosure
  • 10+ years of battery life depending on application and update rate

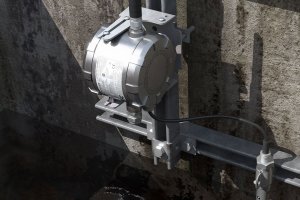

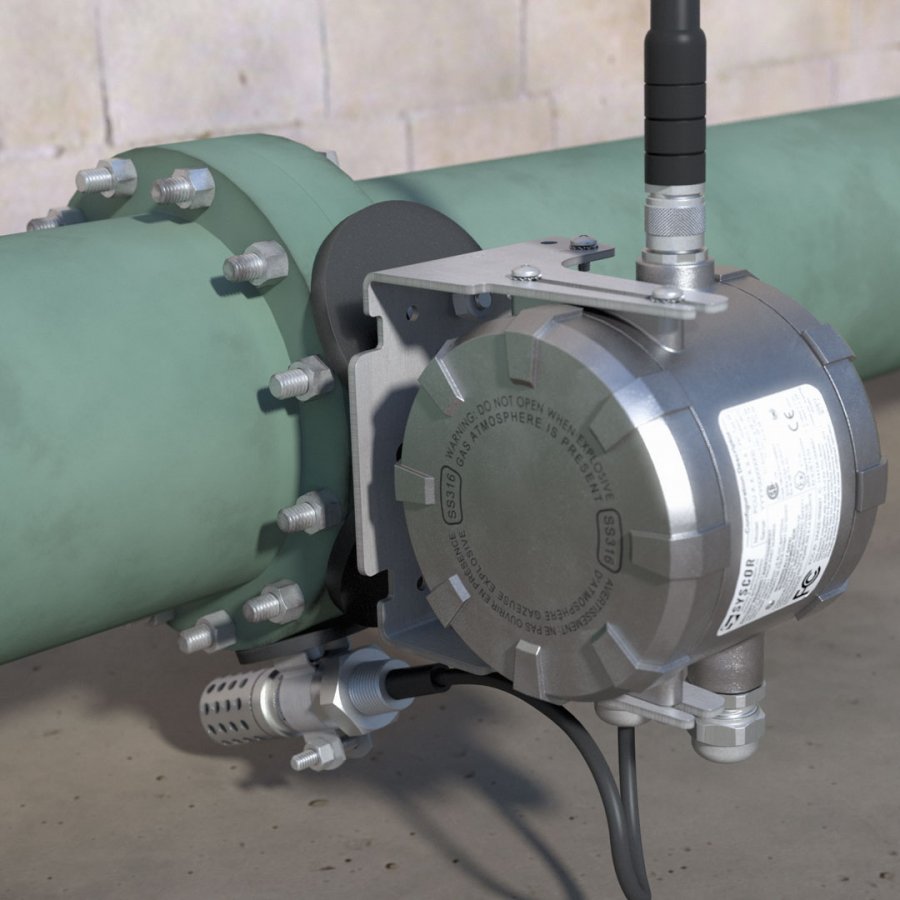

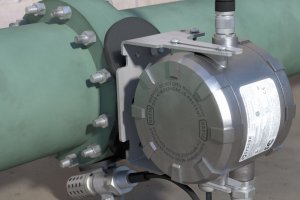

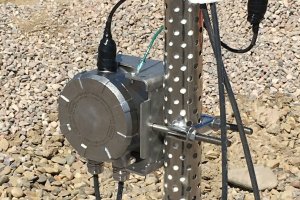

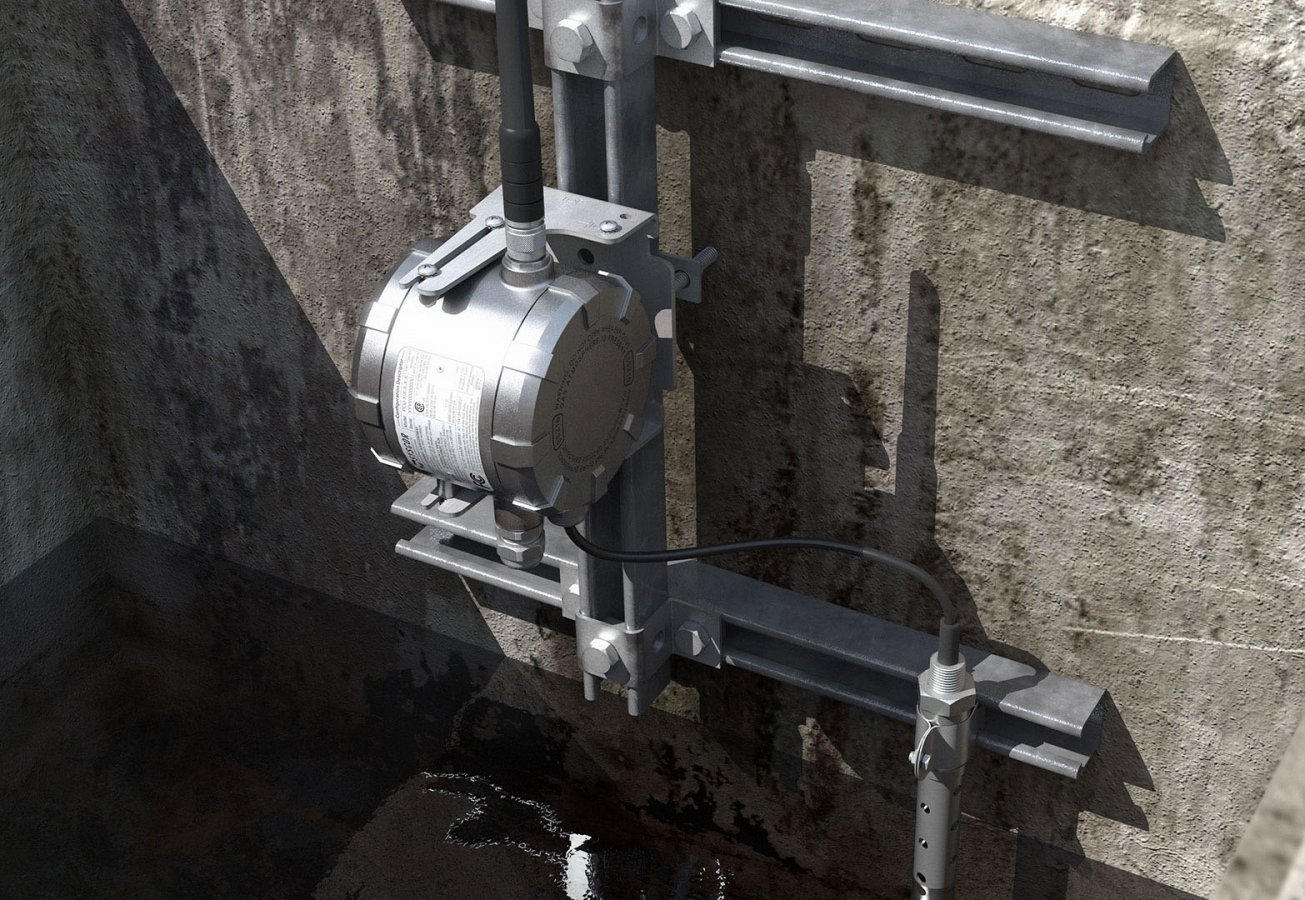

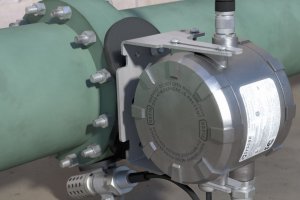

Sensor Hub mounted on a monitoring well Sensor Hub monitoring a pipe flange Sensor Hub monitoring a sump

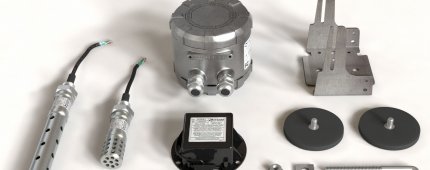

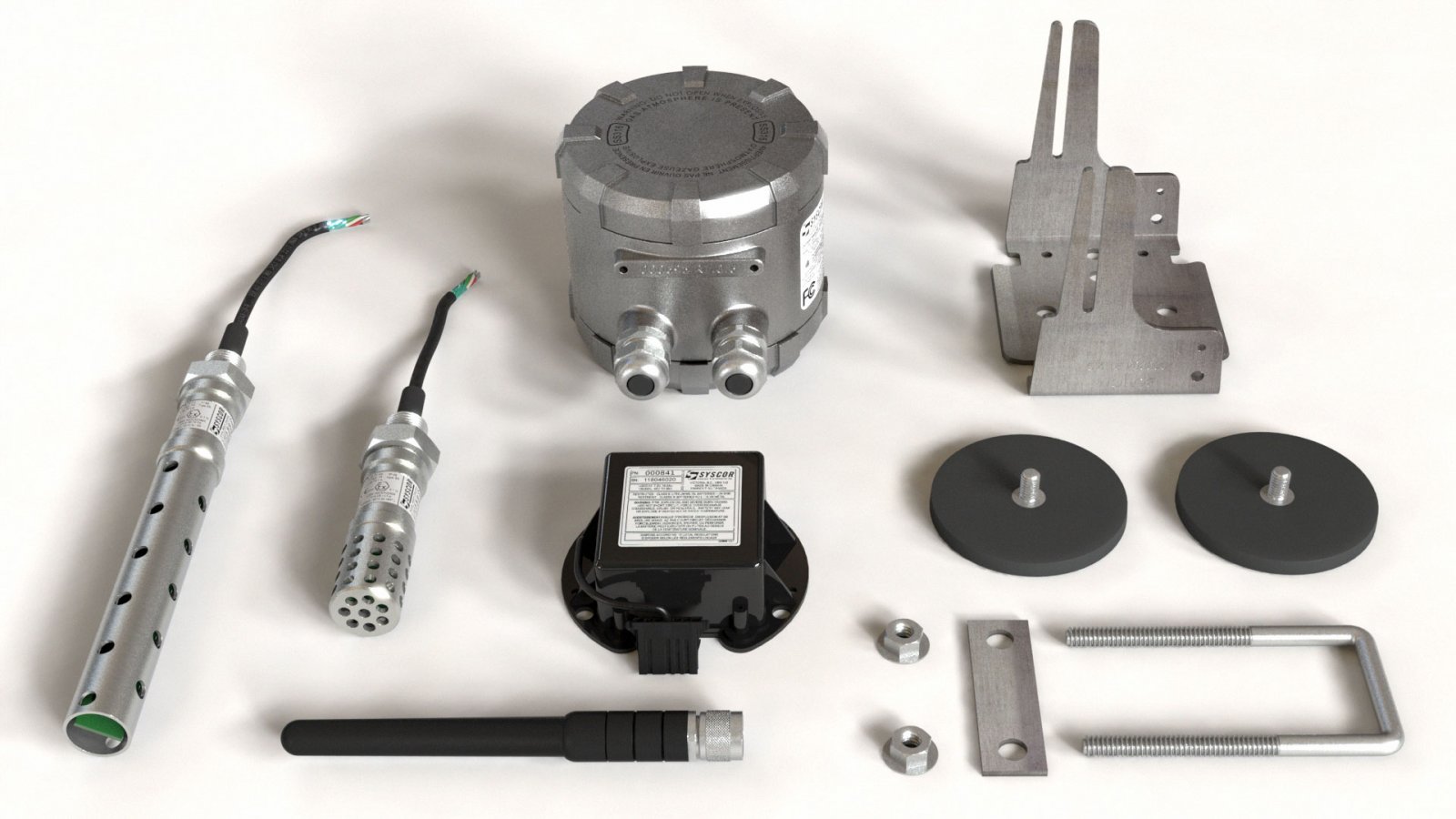

Sensor Hub Accessories

Accessories

Configurations

Sensor Hub Sensor Installation

The Sensor Hub can be equipped with one or two HCD and/or HCDW Probes. Sensor Probes may be screwed into the Sensor Hub, or attached via cable.


Sensor Hub Sensor Configs

Sensor Hub Battery Options

The 19Ahbattery pack provides 10+ years of power depending on application and update rate.

With the Universal Mounting Bracket, the Sensor Hub can be mounted via u-bolt, screws, or magnets.

Sensor Hub Sensor Configs

ICFCC CSA_C_USEx CEIECEx

Documents

PDF PCU-X01 Sensor Hub Spec Sheet

PDF PCU-X01 Sensor Hub Installer Reference

PDF WirelessHART Device Variables
DD WirelessHART Device Description (.dd) File - Contact Syscor to request

PDF CAN/USA Intrinsic Safety
PDF IECEx Intrinsic Safety
PDF ATEX Intrinsic Safety
