Brackets

Standard and magnetic mounting brackets allow HC-Tracker™ and FR-Tracker™ components to be mounted in a wide variety of locations.

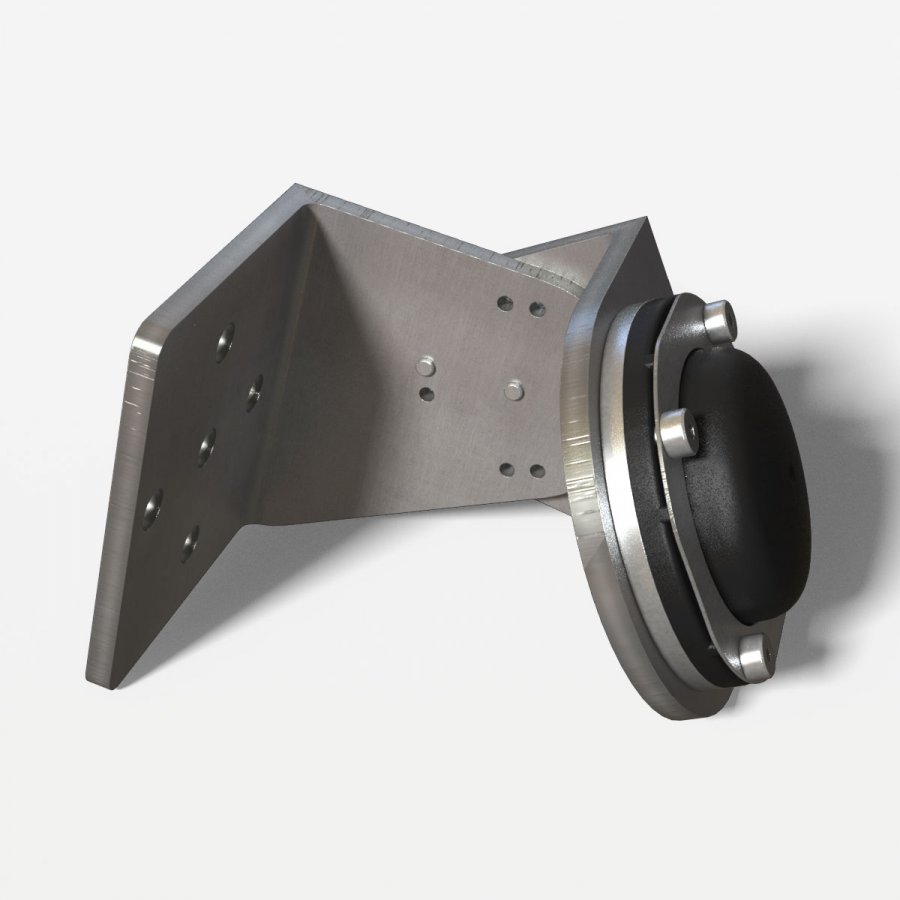

Standard Bracket

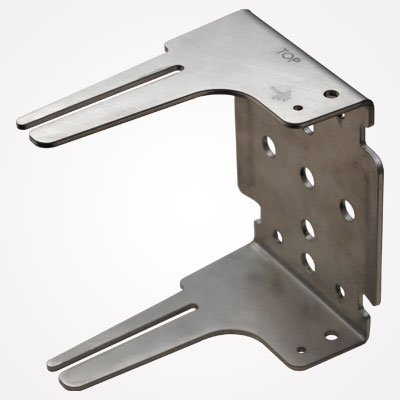

Universal Mounting Bracket

Where it is used

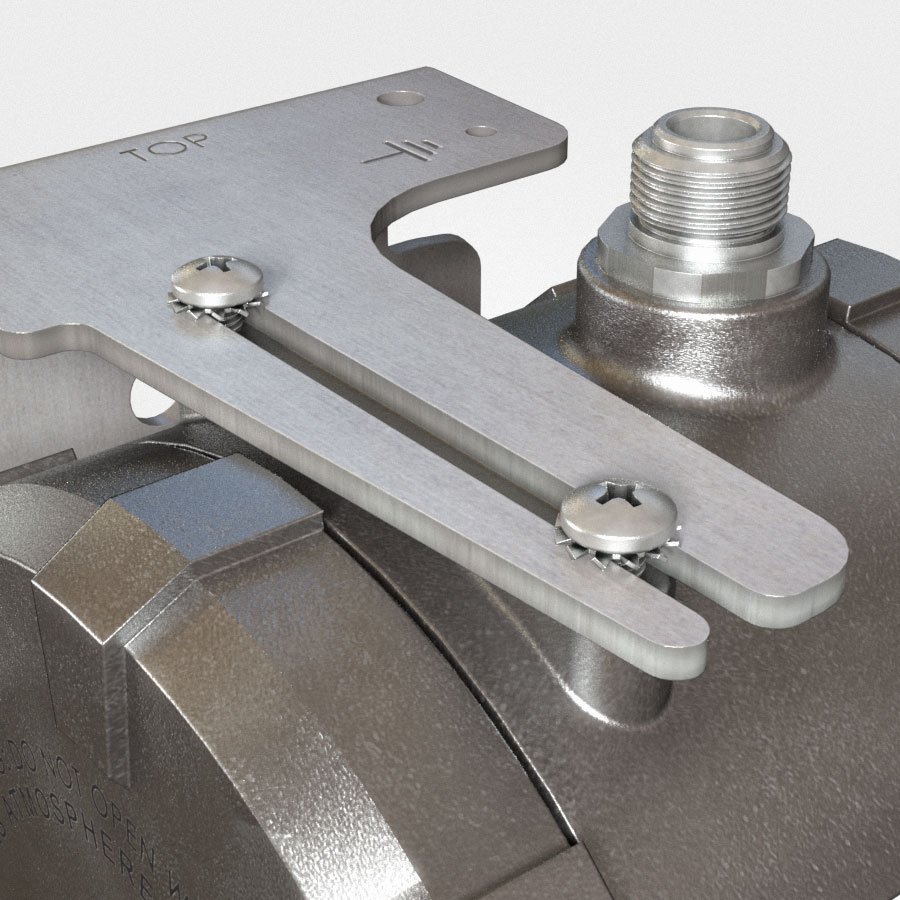

  • The universal mounting bracket is typically used to mount the Syscor Tracker WirelessHART Sensor Hub and WirelessHART Repeater.
  • The universal mounting bracket can also be used with the WirelessHART Inclinometer in certain applications.

The hole pattern on the bracket is sized to allow for:

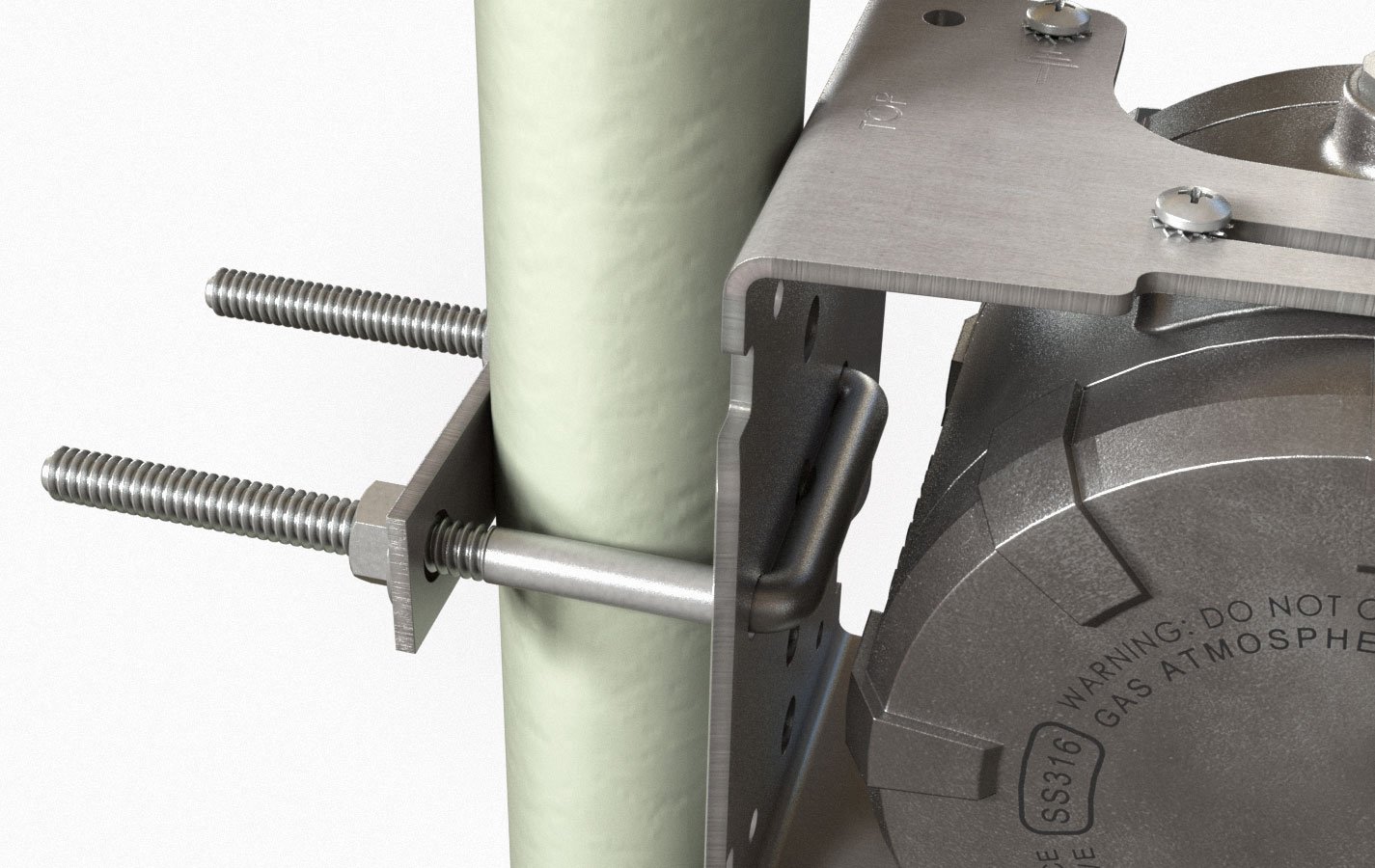

  • U-bolt mounting in both horizontal and vertical orientations,
  • strut channel mounting in a number of orientations depending on the holes selected, and
  • screw mounting directly to metal or wood substrates.

PDF Universal Bracket Data Sheet

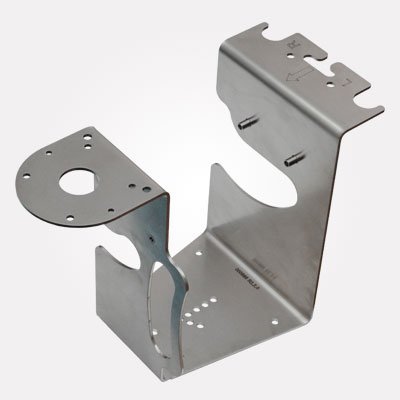

Floating Roof Mounting Bracket

Floating Roof Mounting Bracket

Where it is used

  • The floating roof mounting bracket is designed primarily for use in storage tank floating roof monitoring applications, however, it can be used to mount devices to any flat surface.
  • This bracket is typically the mounting bracket used for the WirelessHART Sensor Hubs as part of the FR-Tracker safety system.
  • Syscor recommends pairing the floating roof mounting bracket with the swivel base to facilitate easy alignment of the Sensor Hub with the center of the tank.
  • When used without the swivel base, three neodymium magnets securely hold the floating roof bracket in place on a nominally level magnetic surface. Optional 3M VHB adhesive tape is used to secure the bracket onto non-magnetic surfaces if required.

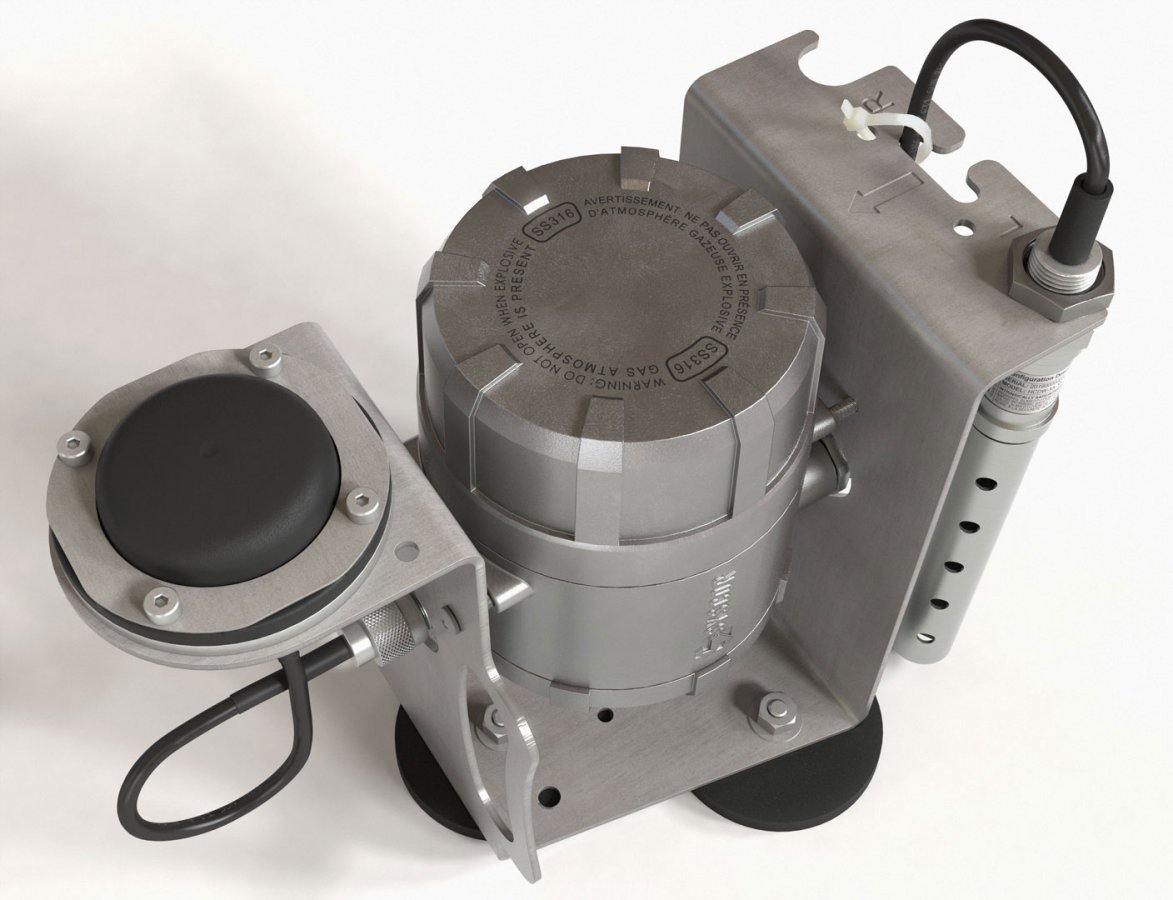

  • The bracket supports a Sensor Hub, Repeater or Inclinometer, both models of sensor transducers, and a patch antenna.

PDF Floating Roof Mounting Bracket Data Sheet

Swivel Base

Swivel Base

Where it is used

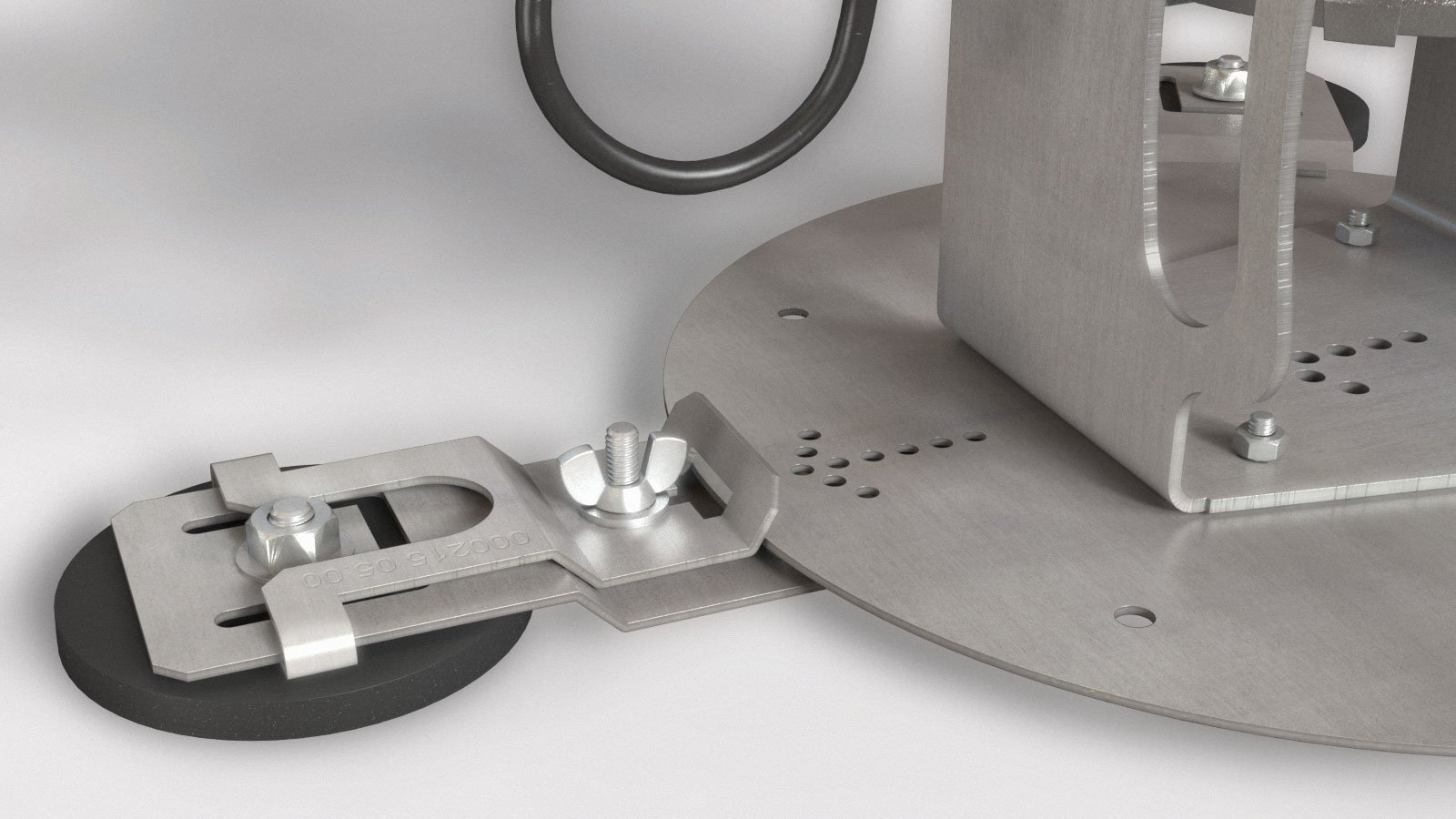

  • The optional swivel base is designed for fast deployment and orientation of the FR-Tracker 2.0 safety system on aboveground storage tank (AST) floating roofs. Installation does not require hot or cold work.
  • Three strong, acrylic-coated neodymium magnets are attached to each base end to ensure stability. 3M VHB adhesive tape can be used to secure the base onto non-magnetic surfaces (e.g. aluminium or composite) if required.
  • The base has a wingnut to lock the circular platform into position.
